Loại sản phẩm

Mainboard

Thương hiệu

Colorful

Model

BATTLE-AX B760M-K D5 V20

Chipset

B760

Hỗ trợ socket

14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® processor

Hỗ trợ bộ nhớ

2 DDR5 memory sockets are provided, which can support up to 96 GB of memory (a single socket can support up to 48 GB of memory)

- Support DDR5-7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory

Cổng kết nối SATA

2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices

- M.2_1 slot: support 2242/2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel)

- M.2_2 slot: support 2242/2280 specification M.2 SSD (PCIe 4.0 x4, PCH channel)

Bảng I/O

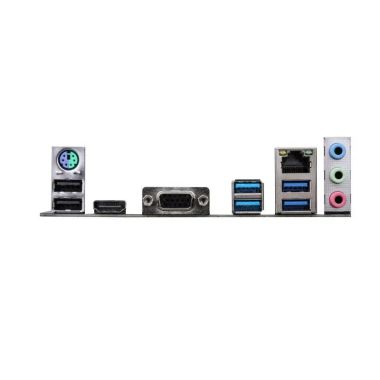

Rear I/O:

- 2×USB 2.0 interfaces

- 4×USB 3.2 Gen 1 Type-A interfaces

- 1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution

- 1×VGA interface

- 1×PS.2 interface

- 1×gigabit network interface

- 3×audio interfaces(audio input/audio output/microphone)

On board:

- 1×USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces

- 1×USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces

- 1×CPU fan pin

- 2×System fan pins

- 1×Front audio pin

- 1×Front panel pin

- 1×Spraker pin

- 1×COM port pin

- 1×ME write protection jumper

- 1×Clear CMOS jumper

- 1×BIOS burner pin

- 1×POST card pin

- 1×Wake-up control jumper

Khe mở rộng

1×PCIe 4.0 x16 slot

1×PCIe 3.0 x1 slot

BIOS

128M UEFI, support multiple languages

LAN

RTL8111H Gigabit Network Card

Audio

5.1 Channel sound card

Chuẩn kích thước

M-ATX

236 x 207 mm
